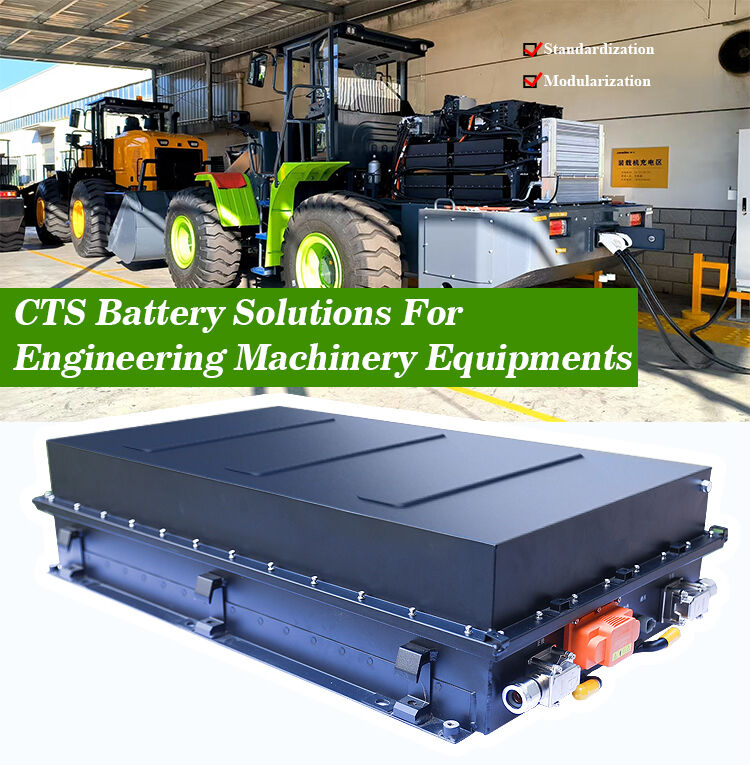

CTS LiFePO4 Battery Solutions for Construction Machinery
Description
CTS delivers high-performance LiFePO4 (LFP) battery systems engineered specifically for construction machinery electrification. Our high-voltage battery solutions combine large energy capacity, high power output, advanced liquid cooling, and extended cycle life to ensure reliable operation in the toughest jobsite environments.
Designed for demanding applications such as excavators, wheel loaders, bulldozers, mining trucks, and concrete mixers, CTS batteries offer superior safety, durability, and customizable integration to match your equipment requirements.
Power your heavy-duty machinery with CTS — efficient, robust, and built for extreme conditions.
Key Features of CTS Battery System
1. High Voltage & Large Capacity
Wide voltage platform (up to 1000V customizable)
Large battery capacity for extended working hours
Supports continuous heavy-load operation
2. High Power Output
Strong discharge performance for high-demand equipment
Stable power delivery during peak load conditions
Ideal for excavation, lifting, and hauling tasks
3. Advanced Liquid Cooling System
Efficient thermal management under extreme conditions
Prevents overheating and ensures system stability
Extends battery lifespan and safety performance
4. Long Cycle Life
4000+ cycles with high capacity retention
Reduced total cost of ownership (TCO)
Suitable for high-frequency operation scenarios
5. Superior Safety (LFP Chemistry)
Excellent thermal stability compared to other lithium chemistries
Integrated Smart BMS (Battery Management System)
Multi-layer protection: overcharge, over-discharge, short circuit, temperature
6. Rugged & Durable Design
مقا designed for vibration, dust, and harsh environments
IP-rated enclosure available
Reliable performance in mining and construction sites

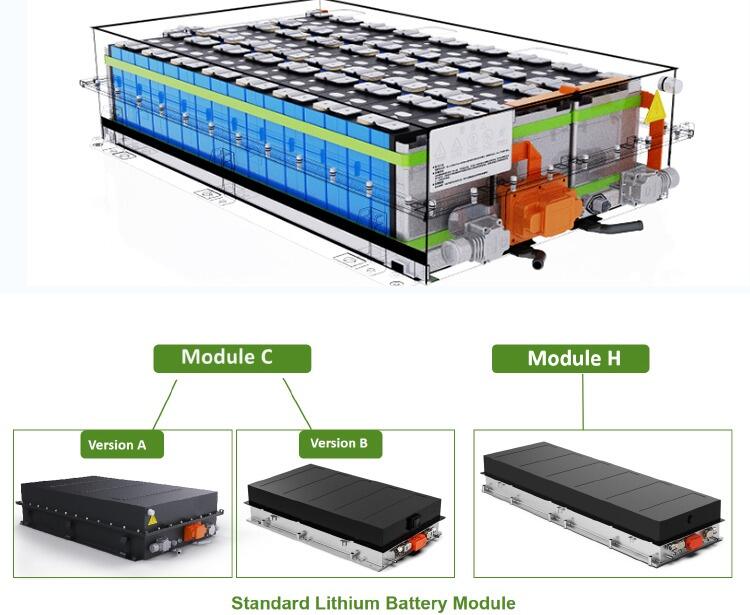

Some Battery Parameters for Reference
| Module Qty | Total Energy | Rated Volt | Rated Capacity | Working Volt | disharge Power @ 25℃ | |
| 153.6V 230Ah Lifepo4 Battery Module | 2S 1P | 70.6kWh | 307.2V | 230Ah | 240V-345.4V | 70kW rated 140kW peak for 10s |
| 3S 1P | 105.9kWh | 460.8V | 230Ah | 360V-525V | 100kW rated 200kW peak for 10s |
|
| 3S 2P | 211.9kWh | 460.8V | 460Ah | 360V-525V | 180kW rated 360kW peak for 10s |
|
| 3S 3P | 317.7kWh | 460.8V | 690Ah | 360V-525V | 220kW rated 440kW peak for 10s |
|
| 4S 1P | 141.3kWh | 614.4V | 230Ah | 480V-700V | 140kW rated 280kW peak for 10s |
|
| 4S 2P | 282.4kWh | 614.4V | 460Ah | 480V-700V | 240kW rated 480kW peak for 10s |
|
| 4S 3P | 423.9kWh | 614.4V | 690Ah | 480V-700V | 300kW rated 600kW peak for 10s |
|
| 5S 1P | 176.6kWh | 768V | 230Ah | 600V-876V | 175kW rated 350kW peak for 10s |
|
| 5S 2P | 353.2kWh | 768V | 460Ah | 600V-876V | 300kW rated 600kW peak for 10s |
|
| 5S 3P | 529.8kWh | 768V | 690Ah | 600V-876V | 370kW rated 740kW peak for 10s |
|
| 115.2V 314Ah Lifepo4 Battery Module | 3S 1P | 108.5kWh | 345.6V | 314Ah | 270V-394.2V | 80kW rated 160kW peak for 10s |
| 3S 2P | 217.0kWh | 345.6V | 628Ah | 270V-394.2V | 170kW rated 300kW peak for 10s |
|
| 3S 3P | 325.6kWh | 345.6V | 942Ah | 270V-394.2V | 250kW rated 320kW peak for 10s |
|
| 4S 1P | 144.7kWh | 460.8V | 314Ah | 360V-525V | 115kW rated 230kW peak for 10s |
|
| 4S 2P | 289.4kWh | 460.8V | 628Ah | 360V-525V | 230kW rated 460kW peak for 10s |
|
| 4S 3P | 434.1kWh | 460.8V | 942Ah | 360V-525V | 345kW rated 450kW peak for 10s |
|
| 5S 1P | 180.9kWh | 576V | 314Ah | 450V-657V | 144kW rated 288kW peak for 10s |
|
| 5S 2P | 361.7kWh | 576V | 628Ah | 450V-657V | 280kW rated 500kW peak for 10s |
|
| 5S 3P | 542.6kWh | 576V | 942Ah | 450V-657V | 430kW rated 500kW peak for 10s |
|
| 6S 1P | 217.0kWh | 691.2V | 314Ah | 540V-788.4V | 170kW rated 340kW peak for 10s |
|
| 6S 2P | 434.1kWh | 691.2V | 628Ah | 540V-788.4V | 345kW rated 600kW peak for 10s |
|
| 6S 3P | 651.1kWh | 691.2V | 942Ah | 540V-788.4V | 500kW rated 600kW peak for 10s |
|
| 307.2V105Ah Lifepo4 Battery Modules | 1S 1P | 32.36kWh | 307.2V | 105Ah | 240-345.4V | 32kW rated 64kW peak for 10s |
| 2S 1P | 64.5kWh | 614.4V | 105Ah | 480-700V | 64kW rated 128kW peak for 10s |
|
| 2S 3P | 193.5kWh | 614.4V | 315Ah | 480-700V | 135kW rated 270kW peak for 10s |

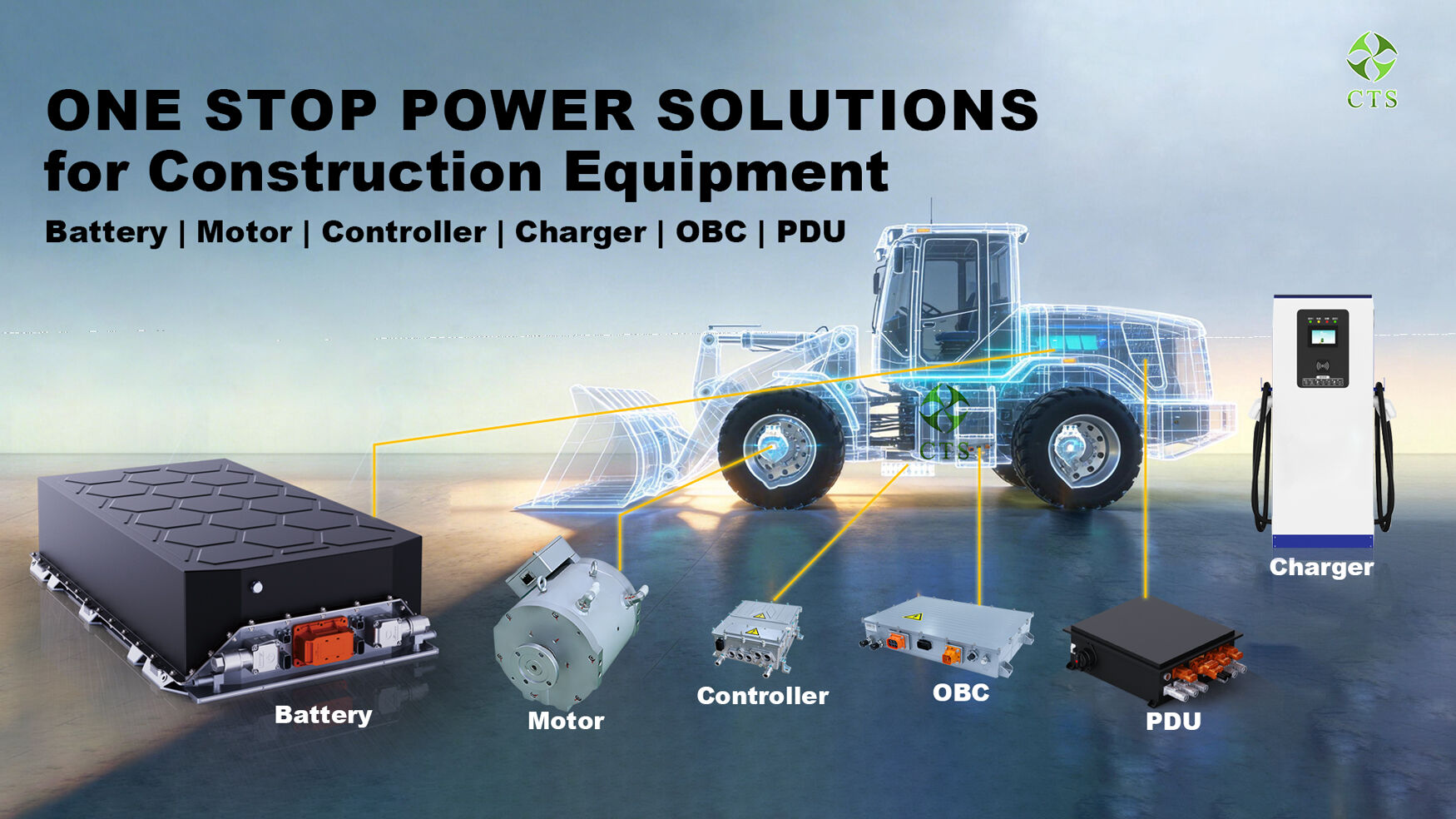

CTS Also Can provide One-Stop Power Solutions for Construction Equipment
Electrification is transforming the construction industry — and CTS delivers the complete solution.
From battery systems to fully integrated powertrain components, we provide:
*Battery Systems
* Electric Motors
* Motor Controllers
* On-Board Chargers (OBC)
* PDU (Power Distribution Unit)
Looking for a reliable lithium battery solution for your construction machinery?
Contact CTS today to get a customized battery solution tailored to your project.
We help you achieve higher efficiency, lower costs, and a faster transition to electrification.
