CTS High Voltage 614V 60kWh 120kWh Lithium Ion Battery System Airport Ground Service Equipment GPU with Aircraft Power Unit
CTS 614V 120kWh lithium battery system for airport ground power units: 98% energy efficiency, IP67 rated, liquid cooling, -20~55°C operation. Trusted by global GSE manufacturers. Request technical demo or ROI analysis report.
Description
HighVoltage Lithiuim Battery System 614V 60kWh 120kWh for GSE GPU Mobile Charging System
╣PRODUCT DESCRIPTION
As a lithium battery manufacturer, we not only offer standard battery products but also provide customized solutions tailored , Multi-Dimensional customization to meet personalized needs,structural design, BMS development, and complete battery pack assembly — ensuring seamless integration with your GPU equipment, improved system efficiency, and extended service life.
✅ Selectable Voltage Platforms (576V / 614V / 640V, etc.)
✅ Customizable Dimensions to fit various GPU cabinets
✅ Multiple Communication Protocols Available (CAN, RS485, Modbus)
✅ Optional Battery Cell Brands
✅ Selectable Voltage Platforms (576V / 614V / 640V, etc.)
✅ Customizable Dimensions to fit various GPU cabinets
✅ Multiple Communication Protocols Available (CAN, RS485, Modbus)
✅ Optional Battery Cell Brands
Battery type |
614V 105Ah LPF Battery |
614V 206Ah LPF Battery |
|
Capacity（kWh） |
≥64.5 |
≥126 |
|
Weight（kg） |
≤500 |
≤1000 |
|
Rated voltage（DC V） |
614.4V |
614.4V |
|
Voltage range（DC V） |
480-700 |
480-700 |
|
Continuous discharge current（A） |
105 |
206 |
|
Peak discharge current（A） |
300A within 30S |
600A within 30S |
|
Continuous charging current（A） |
105 |
614V 206Ah LPF Battery |
|
Charging requirements |
20kW OBC charge and CCS2 DC charge |
20kW OBC charge and CCS2 DC charge |
|
Charge discharge energy efficiency |
≥98% |
≥98% |
|
Warranty |
3 years |
||
Cooling / Heating mode |
Liquid cooling |
||
IP grade |
IP67 |
||
Working environment temperature (℃) |
-20~55 |
||
System self
discharge rate
|
≤4% per month |
||

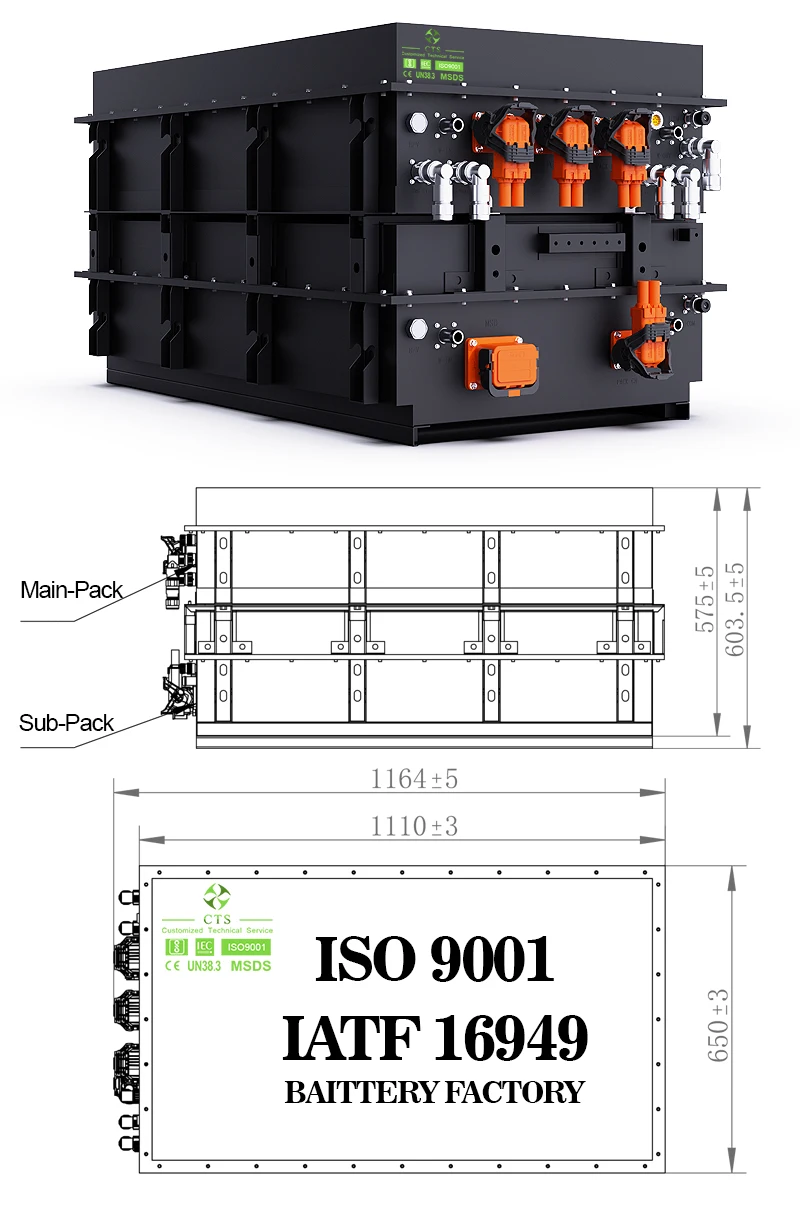

Whole Dimension(L*W*H)mm |
L1200*W650*H650mm |
L1200*W1350*H650mm |
|
╣PRODUCT ADVANTAGES
✅ High Voltage Output: 614V high-voltage ensures stable power supply for GPU equipment, enhancing ground service efficiency for aircraft.
✅ High Energy Density: Equipped with high-performance LiFePO₄ or NCM cells, offering high system energy density and a more compact footprint.
✅ Comprehensive Safety Protection: Integrated BMS provides full-spectrum protection including overvoltage, undervoltage,overcurrent, short circuit, and abnormal temperature.
✅ Eco-Friendly: Zero emissions and low noise, making it a green alternative to traditional diesel GPUs.
✅ Customizable Options: Voltage, current, capacity, dimensions, and communication protocols can be customized to meet specific GPU equipment requirements.
✅ High Energy Density: Equipped with high-performance LiFePO₄ or NCM cells, offering high system energy density and a more compact footprint.
✅ Comprehensive Safety Protection: Integrated BMS provides full-spectrum protection including overvoltage, undervoltage,overcurrent, short circuit, and abnormal temperature.
✅ Eco-Friendly: Zero emissions and low noise, making it a green alternative to traditional diesel GPUs.
✅ Customizable Options: Voltage, current, capacity, dimensions, and communication protocols can be customized to meet specific GPU equipment requirements.

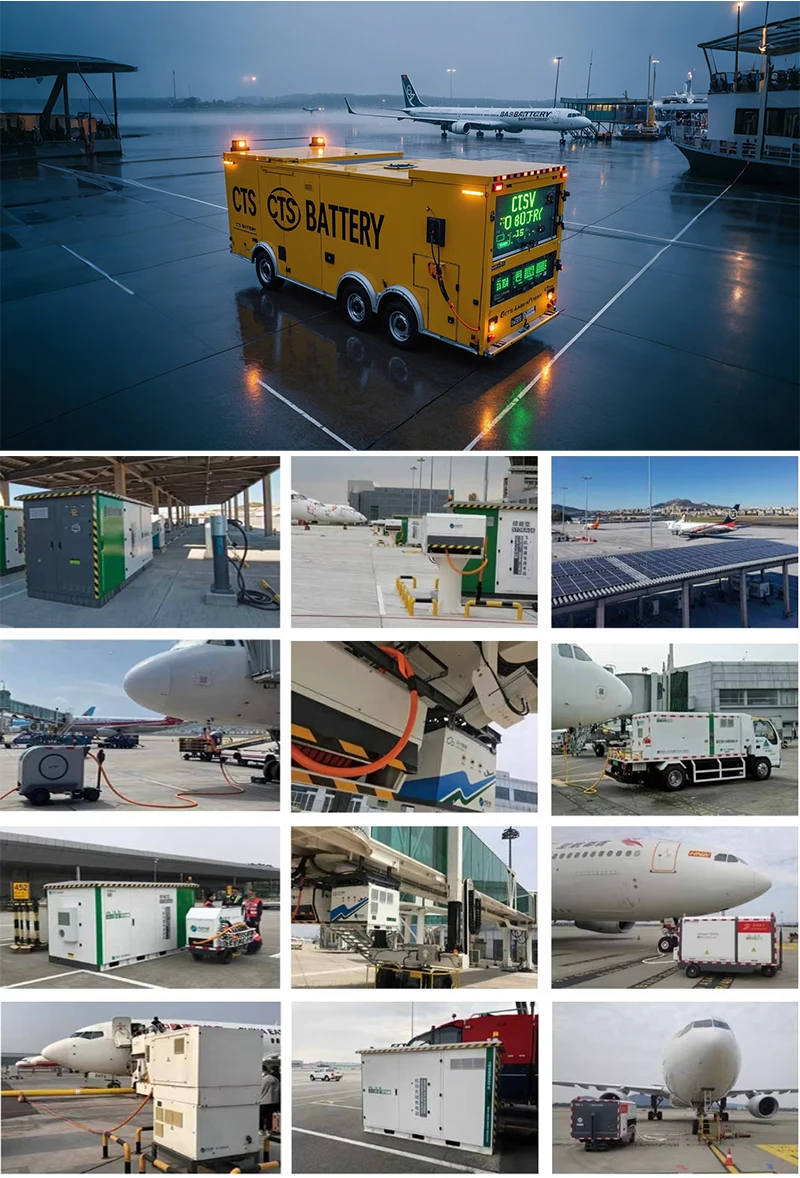

╣APPLICATIONS
We specialize in the research, development, and manufacturing of high-voltage lithium
battery systems. CTS 614V lithium battery system specifically engineered for airport Ground Power Units (GPU). Designed to meet the demanding requirements of ground power equipment, our products offer high energy efficiency, long cycle life, and enhanced safety. They are available in multiple capacities and power configurations to
suit a variety of airport applications.

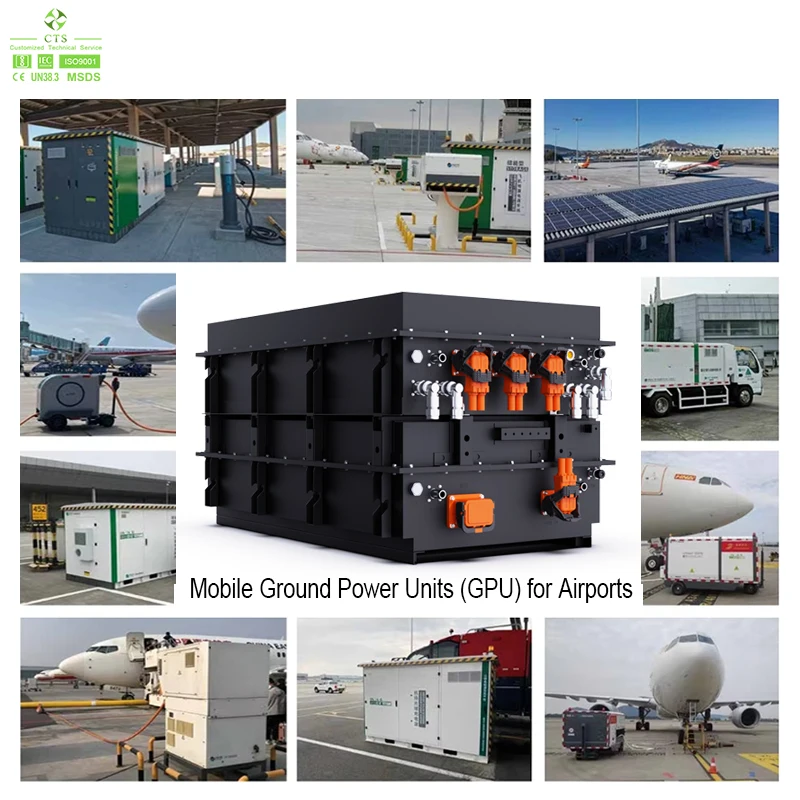

✅Mobile Ground Power Units (GPU) for Airports
✅Aircraft Ground Power Supply Systems
✅Electric Ground Support Equipment (e-GSE)
✅Static Apron Power Supply Systems for Aircraft
battery systems. CTS 614V lithium battery system specifically engineered for airport Ground Power Units (GPU). Designed to meet the demanding requirements of ground power equipment, our products offer high energy efficiency, long cycle life, and enhanced safety. They are available in multiple capacities and power configurations to
suit a variety of airport applications.
✅Mobile Ground Power Units (GPU) for Airports
✅Aircraft Ground Power Supply Systems
✅Electric Ground Support Equipment (e-GSE)
✅Static Apron Power Supply Systems for Aircraft

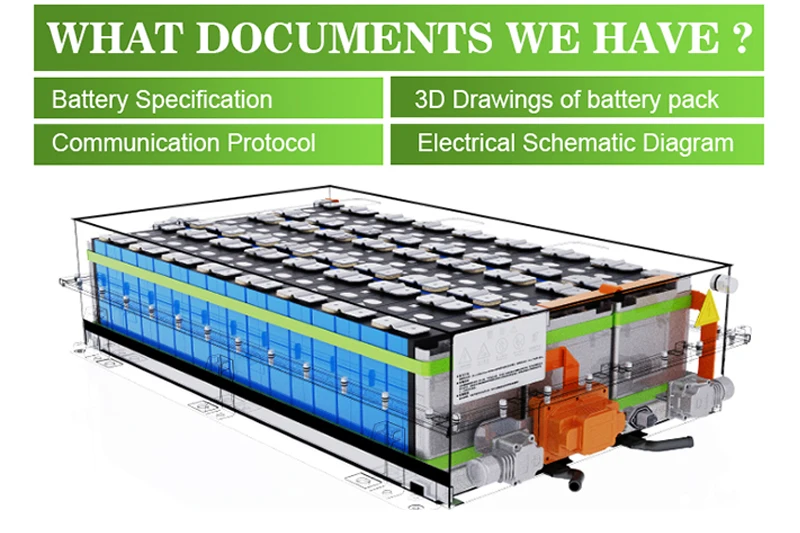

╣COMPANY INTRODUCTION

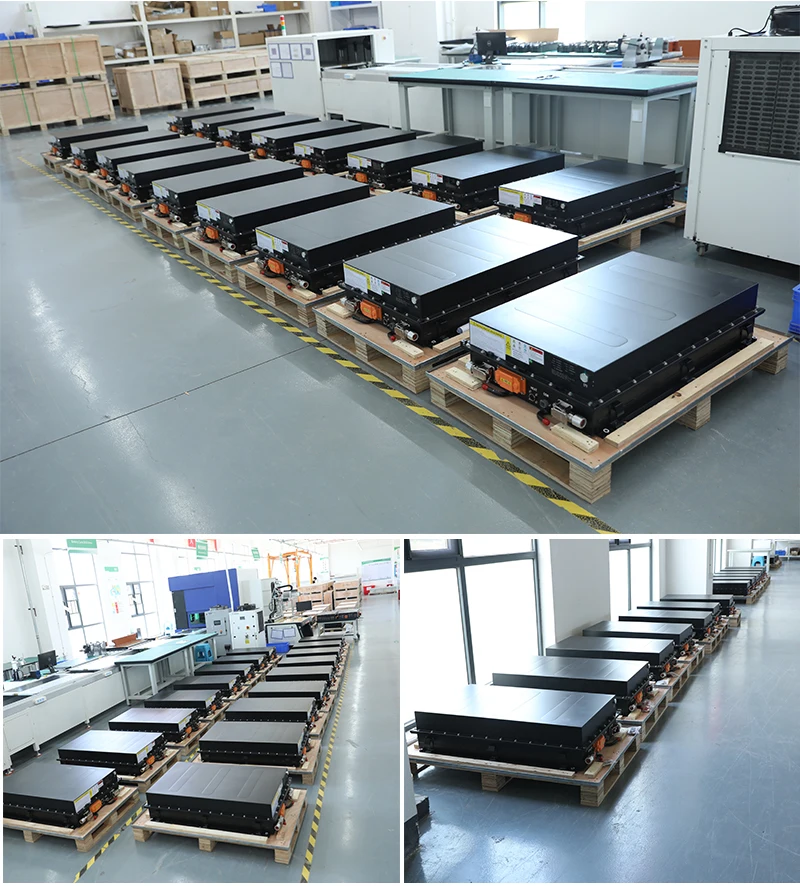

We have a professional R&D team,production line, and a comprehensive quality management system. We have provided
lithium battery solutions to multiple aviation equipment manufacturers
and ground service operators.
✅ Independent R&D and production with flexible delivery schedules
✅ Over 14 years of experience in the power battery industry
✅ Strict factory testing compliant with aviation ground equipment standards
✅ Pre-sales product selection support, installation technical guidance,
and after-sales service
