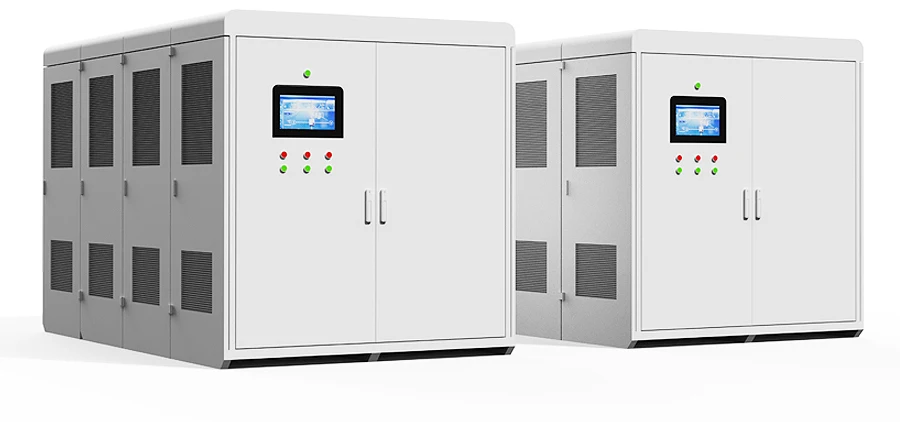

CTS Integrated BESS Energy Storage Battery System Floor-Mounted EV Charging Station Solutions with DC EV Chargers
CTS Integrated BESS floor-mounted EV charging station delivers 98% charge/discharge efficiency, 75-300kW output, CCS2 compatibility, and LiFePO4 safety. Trusted by global fleets for reliable, scalable EV infrastructure. Request ROI analysis.
Description
CTS Intergrated BESS Energy Storage Battery System EV Charging Station Solutions with DC EV Chargers
BP75-FCS50 |
ES150-FCS100 |
ES300-FCS200 |
|||
Battery type |
LiFePo4 |
LiFePo4 |
LiFePo4 |
||
Rated voltage |
768V |
768V |
768V |
||
Energy |
76.8kWh |
153.6kWh |
307.2kWh |
||
Output voltage |
DC200V-750V |
DC200V-750V |
DC200V-750V |
||
DC output power |
50kW |
100kW |
200kW |
||

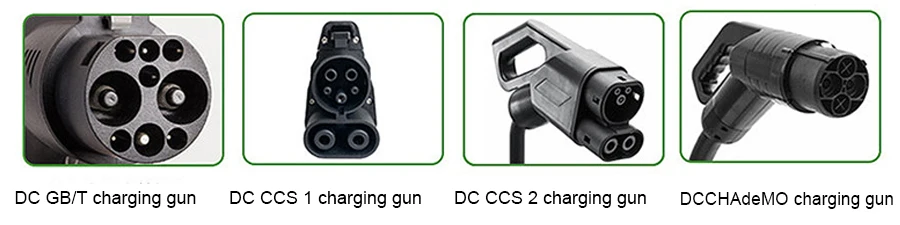

DC output protocol |
CCS2 |
CCS2 |
CCS2 |
||
AC Input voltage |
400VAC |
400VAC |
400VAC |
||
AC Input power |
50kW |
100kW |
200kW |
||
AC Input frequency |
50/60HZ |
50/60HZ |
50/60HZ |
||
Solar Input |
Optional |
Optional |
Optional |
||
Size(W*D*H) |
1680*1500*1700mm |
1680*2700*1700mm |
1680*3830*1700mm |
||
Weight |
1395Kg |
2470Kg |
4620Kg |
||
Charging mode |
Manual/Scan/Password |
||||
Charge/discharge efficiency |
>98% |
>98% |
>98% |
||
