CTS Integrated Solar EV Charging Station Solutions DC Solar EV Charger with Lifepo4 Battery System and PV Panels
CTS integrated solar EV charging station with 215-362kWh LiFePO4 battery & 100kW PV. Cut energy costs by 40%, achieve energy independence. ISO 9001, CE, UN38.3 certified. Trusted by 150+ industrial sites. Request ROI analysis.
Description

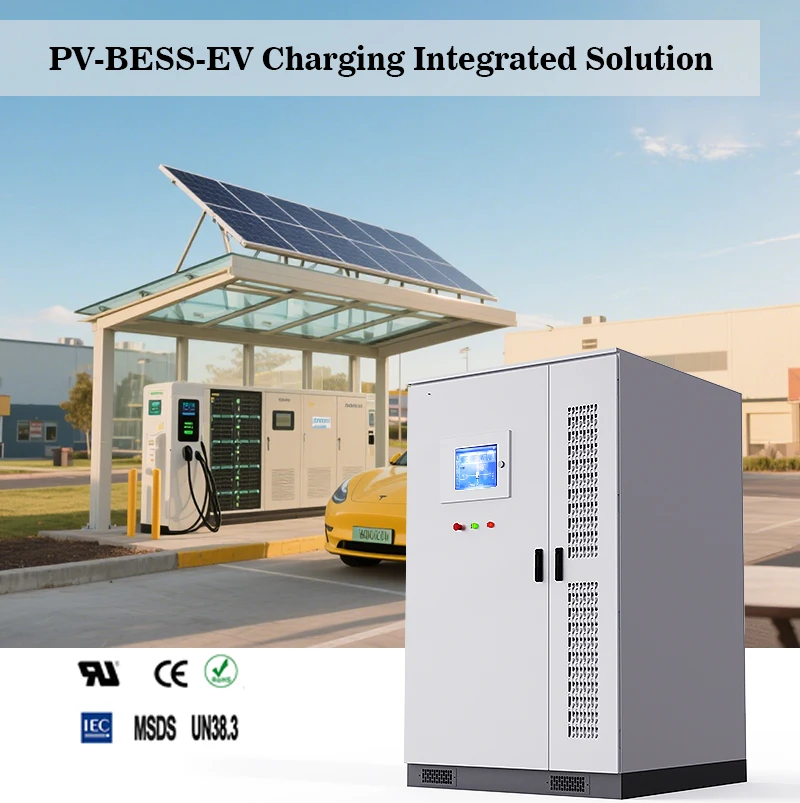

PV-BESS-EV Charging integrated Solution for EV Charging Station
╣PRODUCT DESCRIPTION

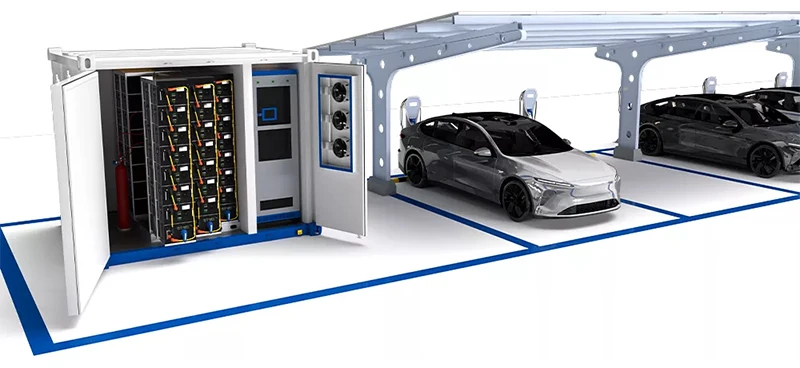

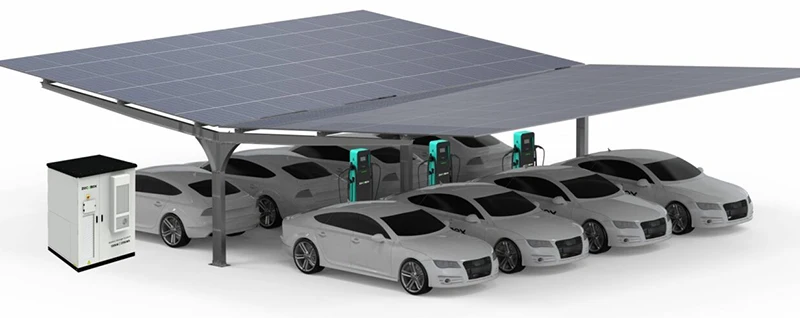

CTS can offer integrated solar-storage-charging solutions that combine solar PV generation, battery storage, and EV chargers for maximum energy efficiency. Whether for home EV charging, commercial parking lots, or industrial facilities, our solution delivers reliability and cost-effectiveness.

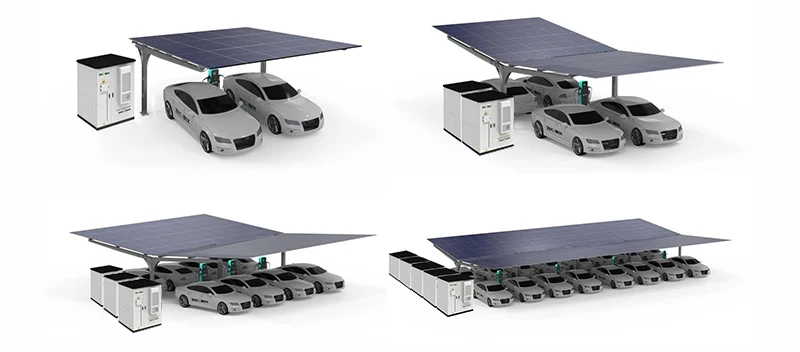

All-in-One Energy Solution: Integrated PV panels, battery storage, and EV charger for commercial, and industrial use.
Smart Energy Management: Built-in EMS for self-consumption optimization and intelligent scheduling.
High Efficiency & Safety: Premium PV modules and safe LiFePO4 batteries with advanced BMS.
Energy independence: Solar energy is self-generated and used during the day, reducing dependence on the power grid. Peak shaving and valley filling: The energy storage system charges during thevalley and discharges during the peak, reducing electricity costs. Flexible deployment: Applicable to a variety of scenarios, flexible switching be-tween off-grid and on-grid
Smart Energy Management: Built-in EMS for self-consumption optimization and intelligent scheduling.
High Efficiency & Safety: Premium PV modules and safe LiFePO4 batteries with advanced BMS.
Energy independence: Solar energy is self-generated and used during the day, reducing dependence on the power grid. Peak shaving and valley filling: The energy storage system charges during thevalley and discharges during the peak, reducing electricity costs. Flexible deployment: Applicable to a variety of scenarios, flexible switching be-tween off-grid and on-grid

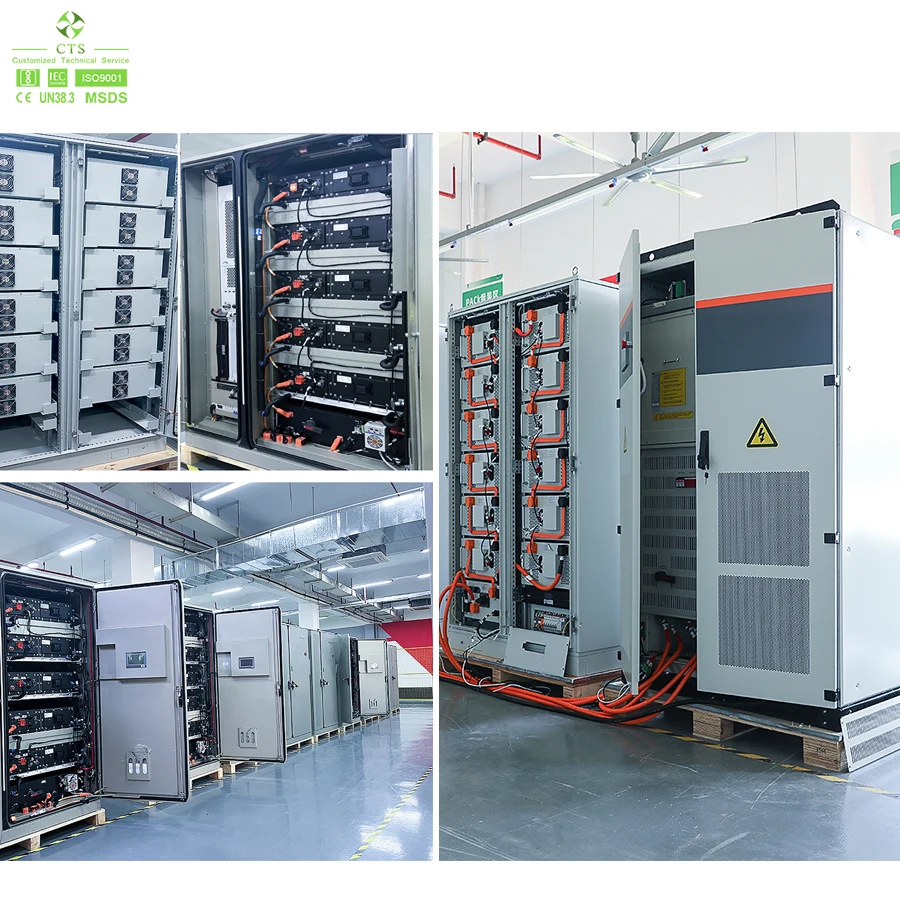

Some Parameters of Energy Storage Battery System
(CTS also can offer PV system and EV charging system )
|
||||||
Model |
215KWh+100KW/IP54 |
305KWh+100KW |
362KWh+100KW |
|||
Battery Energy |
215KWh |
305KWh |
362KWh |
|||
PCS Power |
100KW |
100KW |
100KW |
|||
MPPT Power |
120KW |
120KW |
120KW |
|||
MPPT Range |
250~850Vdc(10r 4Channel) |
250-850Vdc(1 or 4Channe) |
250-850Vdc(1 or 4Channel) |
|||
AC Voltage |
400V/230V |
400V/230V |
400V/230V |
|||
Protection Level |
IP54 |
IP54 |
IP54 |
|||
Parallel Qty. |
10 |
10 |
10 |
|||
Diesel Generator Interface |
Support |
Support |
Support |
|||
Size(mm) |
1580*1050*2090mm |
1580*1190*2355mm |
1580*1190*2355mm |
|||
Weight(kg) |
~2500kg |
~2930kg |
~3230kg |
|||

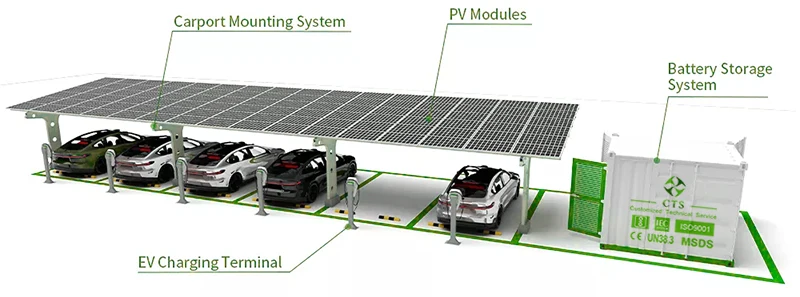

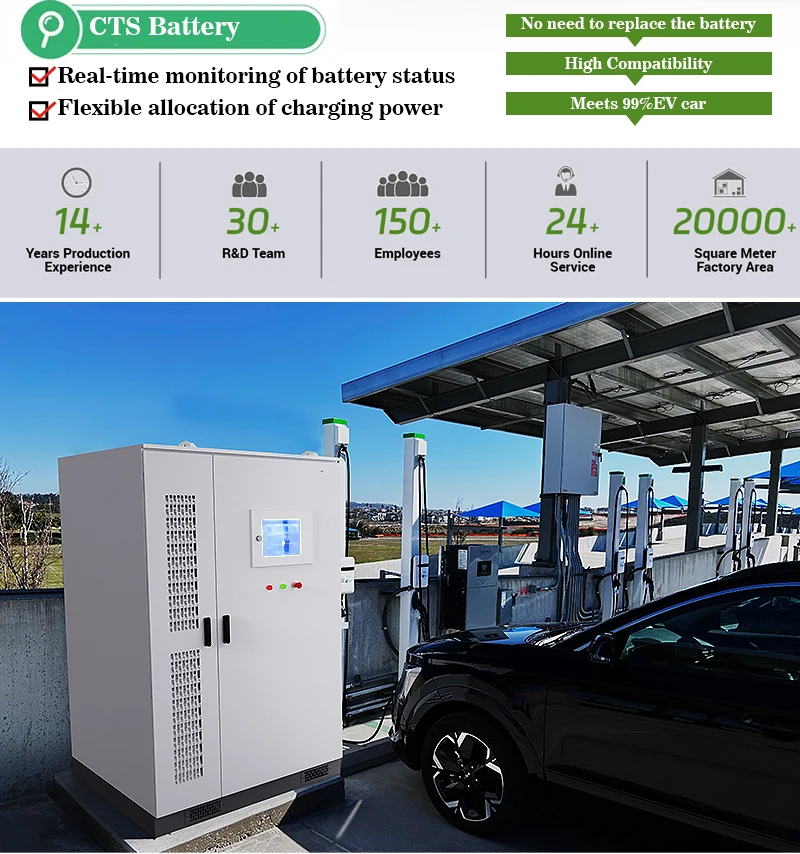

Solar-Storage-Charging Integrated Solution
| PV + Battery Storage + EV Charger

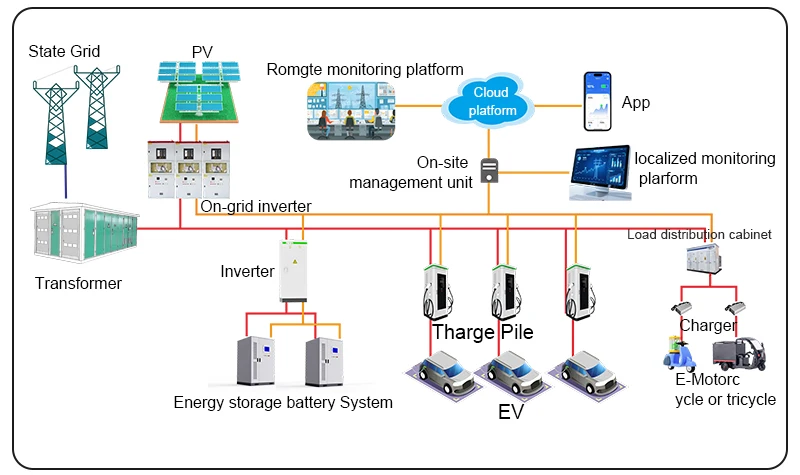

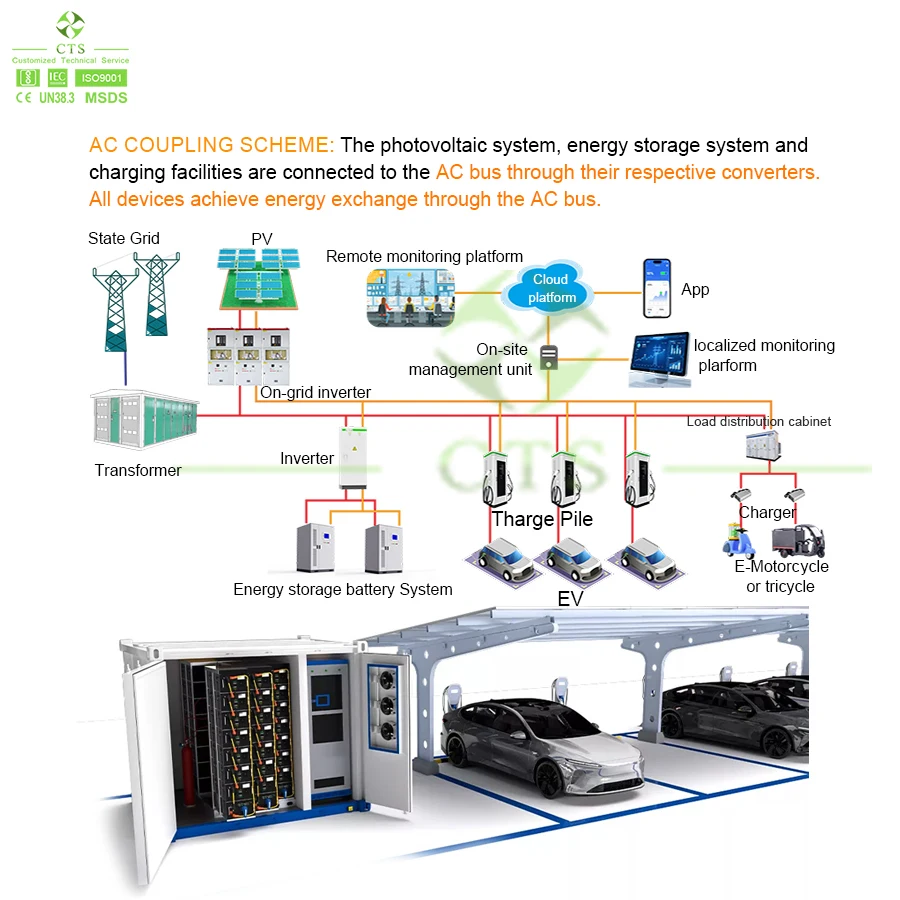

The AC-coupled solution connects the PV system, energy storage system, and charging facilities to a common AC bus through their respective inverters, enabling energy exchange among all devices.

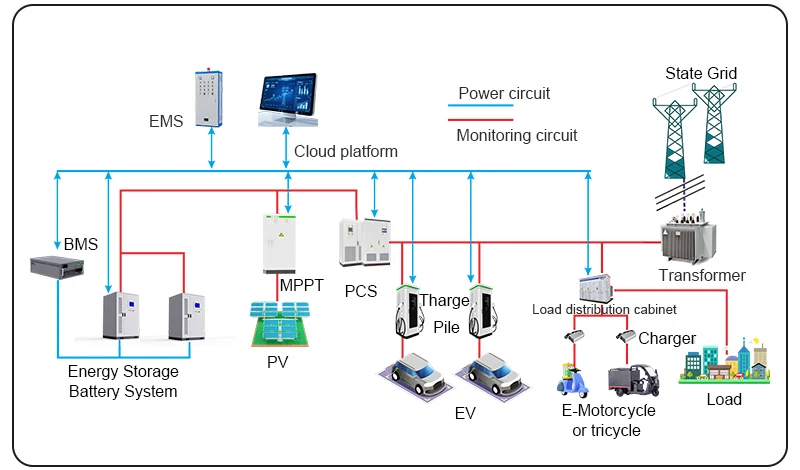

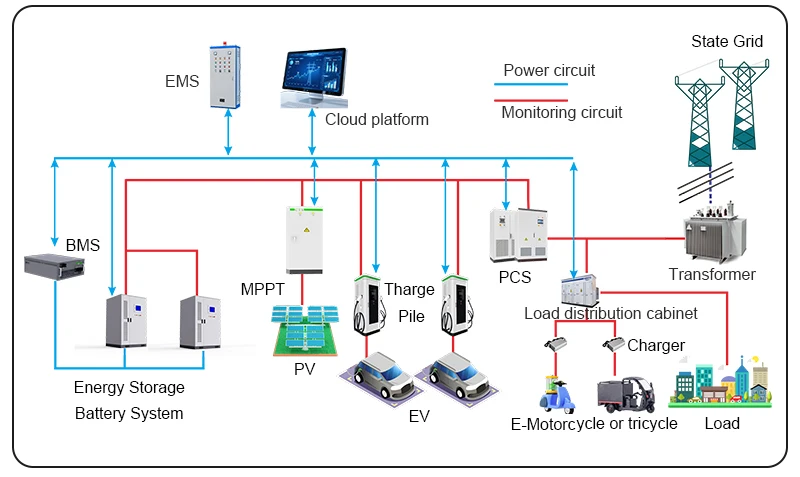

The DC-coupled solutionconnects the PV system, energy storage system, and DC charging equipment directly to a high-voltage DC bus. By reducing multiple DC/AC conversions, it significantly improves overall system efficiency.
The AC/DC hybrid solution allows the PV system, energy storage system, and DC charging equipment to be selectively connected to their respective AC or DC buses, providing dynamic energy routing.
If you want know more about the whole system, plz click "Chat now"!!
╣PRODUCT ADVANTAGES
1. Reduce costs :

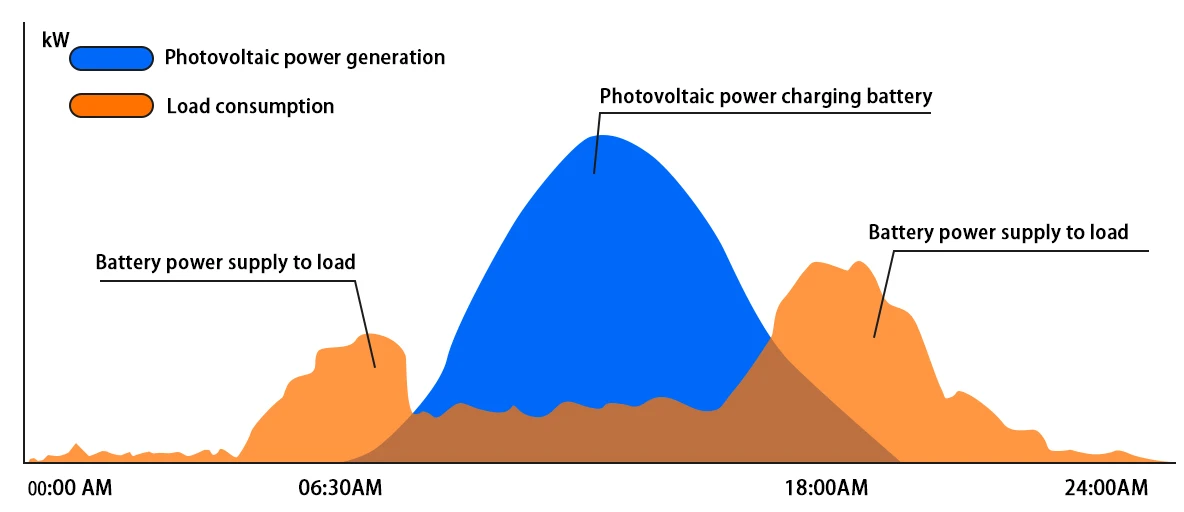

Reducing electricity consumption during the day through photovoltaic power generation Excess electricity can be stored in batteries and used at night or when electricity prices are high Avoid peak electricity prices, achieve peak shaving and valley filling, reduce costs and increase efficiency..
2. Integrated system, easier deployment
Modular integration, prefabricated system design ,Save installation time and engineering costs,Reduce the risk of multi-system debugging.
3. Safe and reliable, intelligent operation and maintenance
Equipped with intelligent EMS system, real-time monitoring and scheduling Multiple protection mechanisms to ensure safe operation of the systemSupport remote fault diagnosis and early warning
4. Relieve grid pressure Distributed power generation + energy storage, reduce dependence on traditional power grids Reduce the grid load risk caused by large-scale simultaneous charging of electric vehicles
╣APPLICATIONS

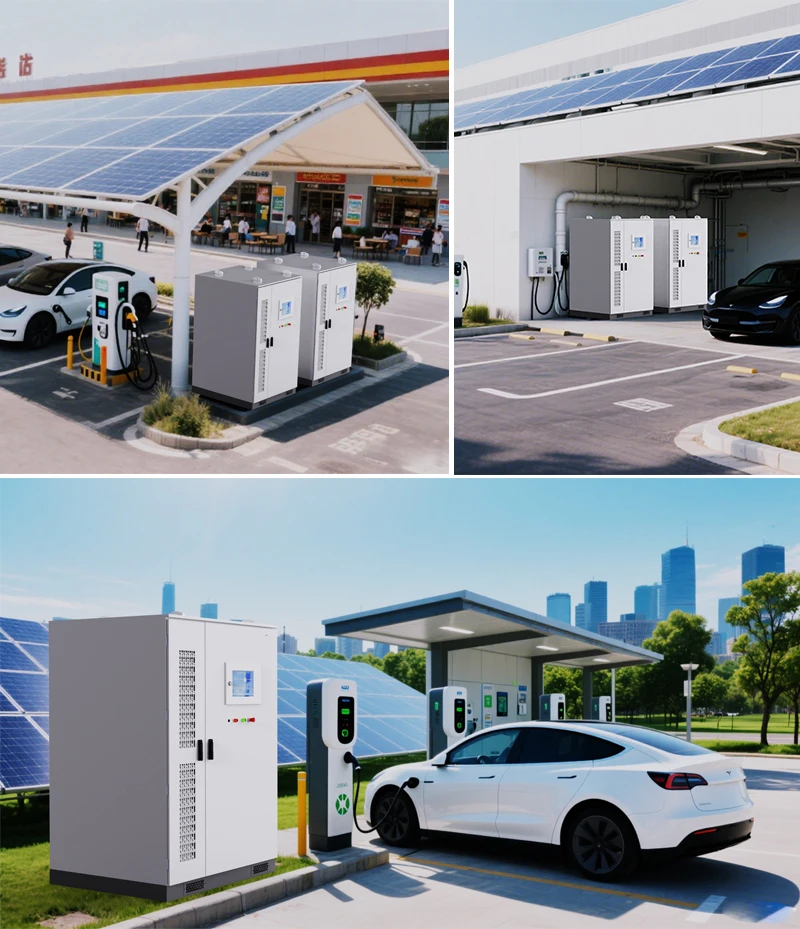

◆ Industrial and commercial parks
Photovoltaic power generation for self-use during the day, and the remaining power isstored or sold Use the energy storage system to supply power at night or during peak hours

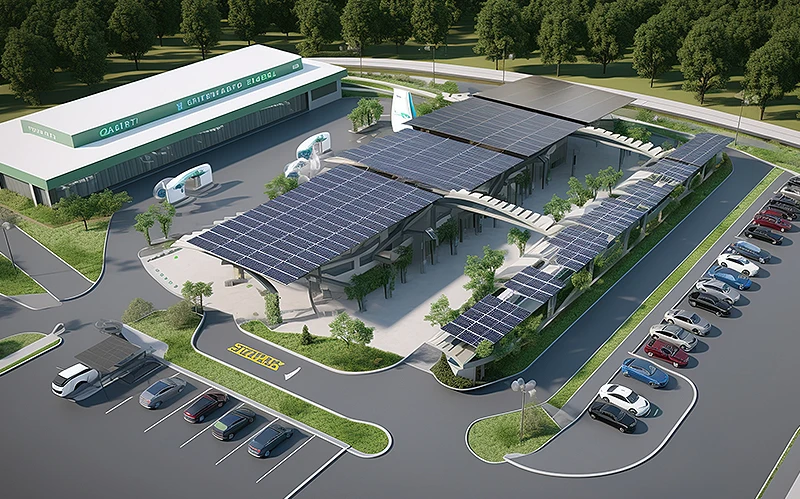

◆Charging stations/power stations
Highway service areas, urban public parking lots Combining photovoltaics and energy storage to solve the problem of grid expansion
◆Off-grid areas
Remote mountainous areas, islands, camps and other areas without electricity or un-stable power supply Provide stable and continuous green power support

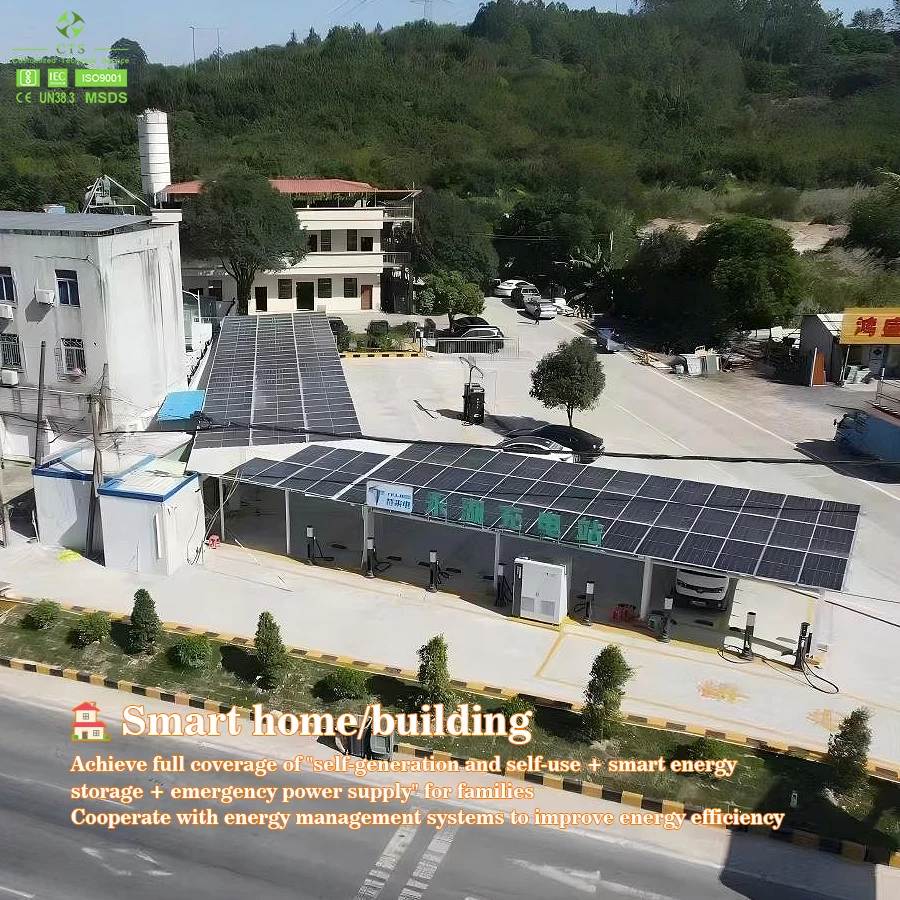

◆Smart home/building
Achieve full coverage of "self-generation and self-use + smart energy storage + emergency power supply" for families
Cooperate with energy management systems to improve energy efficiency
╣WHY CHOOSE US ?
* Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
* 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
* One-stop customized service for 12V to 1000V battery system.
* 100% OQC testing with 25 detection contents.
* 14 years lithium battery designing and production experience.
* ISO9001&IATF16949 certifications to ensure the quality of products.
* Cross-industry battery solution.
* 2 factories in battery manufacturing and R&D.
* Global on-site technical support.
* 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
* One-stop customized service for 12V to 1000V battery system.
* 100% OQC testing with 25 detection contents.
* 14 years lithium battery designing and production experience.
* ISO9001&IATF16949 certifications to ensure the quality of products.
* Cross-industry battery solution.
* 2 factories in battery manufacturing and R&D.
* Global on-site technical support.
╣OUR FACTORY
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, golf cart batteries, energy storage battery system, mobile charging station etc... With 30 people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world，such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
